Horizontal Gel Box

Horizontal Gel Box
Cat #
Shipping Weight
26.00 lbs
List Price:
Our price:
  • Details
  • Send to friend
  • Related products
  • Customer feedback
Save 42%
  • Molded, durable construction
  • Rubber gates for easy, tapeless gel casting
  • Adjustable height combs
  • Loading guides aid in well visualization

are available, from a mini gel system to a large maxi gel system that can accommodate as many as 450 samples in a single run. A wide range of accessories are available to customize your system, including multichannel compatible gel combs.

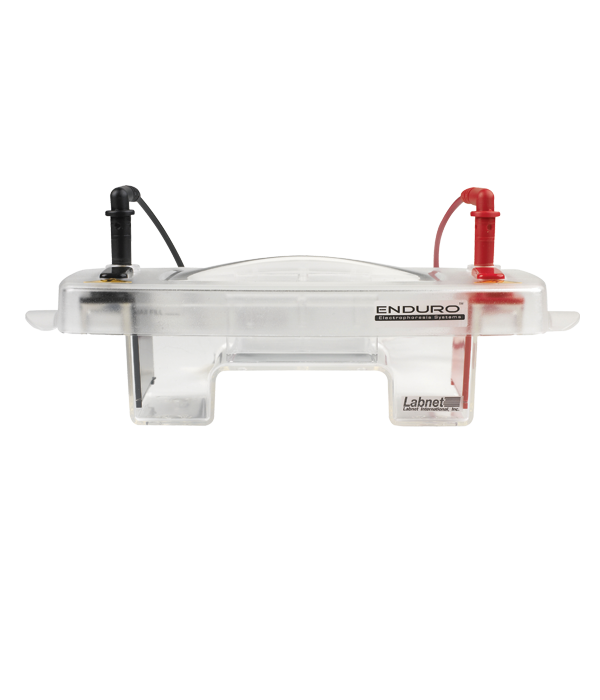

The Enduro gel tanks are molded for leakproof performance and a long service life. The corrosion resistant platinum electrodes are located in cassettes to protect them during cleaning and provide for easy replacement. The lids fit on the gel boxes in only one direction. A drip ring on the lid recycles condensed buffer and prevents it from dripping directly onto the gel

Casting gels for the Enduro system is very easy. Simply snap the rubber gates onto the ends if the tray, place the comb in position and pour the gel - no taping is necessary. Slots on the sides of the gel trays hold the combs in place. The two piece combs are designed so that the teeth can be raised or lowered to vary the depth of the well within the gel. The supplied combs are 1.5 mm thick. Combs of other thicknesses are available separately. After the gel has hardened, the combs and gates are removed and the gel and tray placed in the gel box. Loading strips may be placed on the bottom of the gel box to aid in well visualization. Gel trays are UV transparent.

The power leads for the Enduro system are attached to the gel box lid. The connection with the electrodes is made only when the lid is properly in place. Removal of the lid removes power from the system. Side tabs and pressure pads make lid removal easy and prevent sloshing of buffer.

Enduro 7x7
Unit Dimensions 9 x 21 x 9cm
Gel Size 7 x 7cm
Maximum Samples: 32
Buffer Volume 225mL

Enduro 7x10
Unit Dimensions 9 x 21 x 9cm
Gel Size 7 x 10cm
Maximum Samples: 64
Buffer Volume 225mL

Enduro 10x10
Unit Dimensions 12.5 x 22 x 9cm
Gel Size 10 x 10cm
Maximum Samples: 100
Buffer Volume 300mL

Enduro 15x10
Unit Dimensions 17.5 x 26.5 x 9cm
Gel Size 15 x 10cm
Maximum Samples: 140
Buffer Volume 500mL

Enduro 15x15
Unit Dimensions 17.5 x 26.5 x 9cm
Gel Size 15 x 15cm
Maximum Samples: 210
Buffer Volume 500mL

Enduro 20x20
Unit Dimensions 23 x 39.5 x 9cm
Gel Size 20 x 20cm
Maximum Samples: 450
Buffer Volume 1200mL

Construction: Molded Acrylic
Safety: Unidirectional safety lid
UV Transparency: Gel tank, trays and lid
Gel Casting: Rubber gates supplies
Combs: Height-adjustable
Comb Thicknesses: 0.75, 1, 1.5 and 2mm

Each gel box is supplied with combs appropriate for the box ordered

*enduro is trademarked by Labnet International*
