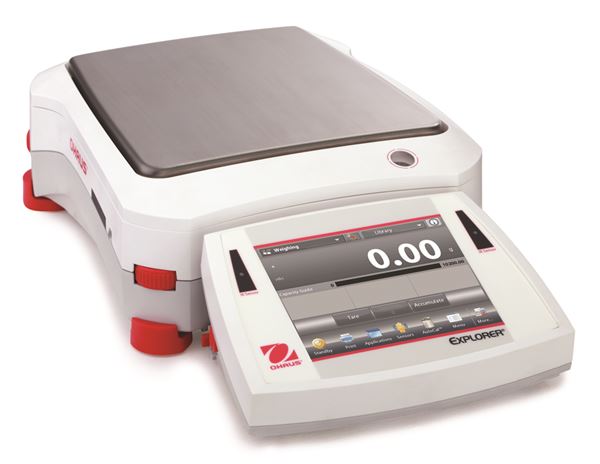

EX4202/E Explorer Precision Balance

EX4202/E Explorer Precision Balance
Cat #
EX4202/E
Shipping Weight
6.00 lbs
List Price:
$2,690.00
Our price:
$2,241.45
  • Details
  • Send to friend
  • Customers also bought
  • Customer feedback
Save 17%

OVERVIEW

The OHAUS Explorer Series of precision balances combine modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. These smart and intuitive balances simplify even the most complex laboratory measurements.

Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC, Statistics

Display

5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness

Operation

AC adapter (included)

Communication

RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.

Construction

Modular design, metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors and flip/sliding top door (1mg models only), illuminated up-front level indicator, integral weigh below hook, security bracket, calibration lock, four touchless sensors, full housing in-use cover

Design Features

Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages

SPECIFICATIONS

Maximum Capacity 4,200 g
Readability 0.01 g
Pan Size 7.5 in x 8 in (190 mm x 200 mm)
Internal Calibration Not Applicable
Draftshield —
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Communication RS232 (Included);  USB (Included);  2nd RS232 (Available as an Accessory);  Ethernet (Available as an Accessory)
Dimensions (HxLxW) 3.9 in x 15.5 in x 9.1 in (98 mm x 393 mm x 230 mm)
Display Full-color 5.7 in VGA, touch screen
In-use cover Included
Legal for Trade Not Applicable
Linearity ± 0.02 g
Minimum Weight (USP), typical 16 g
Net Weight 9.5 lb (4.3 kg)
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability (typical) 0.01 g
Stabilization Time 1 s
Tare Range To capacity by subtraction
Units of Measurement Baht;  Carat;  Custom;  Grain;  Gram;  Hong Kong Tael;  Kilogram;  Milligram;  Mesghal;  Momme;  Newton;  Ounce;  Ounce Troy;  Pennyweight;  Pound;  Singapore Tael;  Taiwan Tael;  Tical;  Tola
Working Environment 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
